capacitors
| PARAMETER | SPECIFICATION |
|---|---|

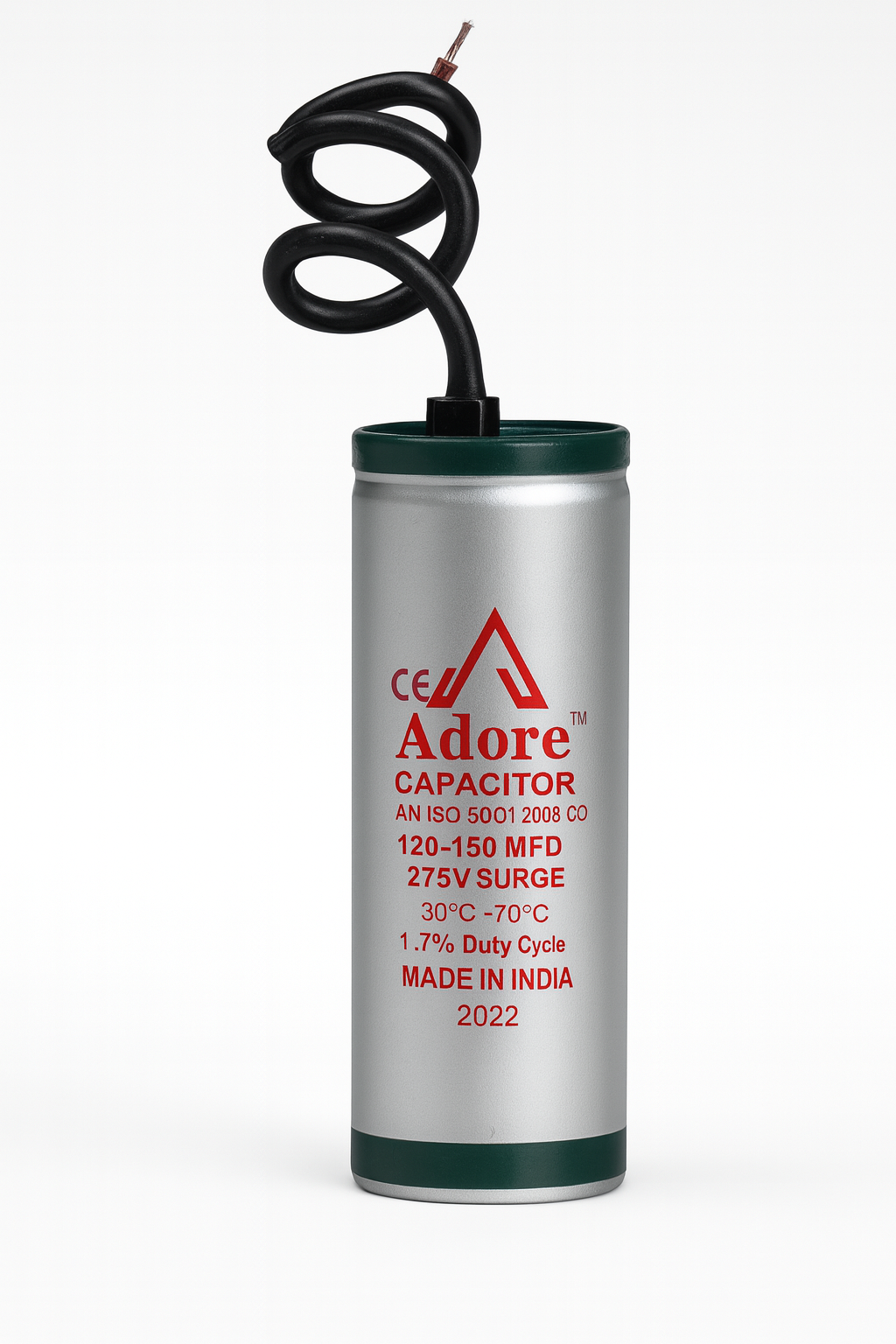

| Product Name | AC Electrolytic Motor Start Capacitor |
| Material | Aluminium |
| Brand | Adore |
| Capacitance | 40–60 to 400–500 MFD |
| Application | Submersible Panels |
| Voltage Rating | 230V |
| Capacitor Type | Dry Filled |
| Color | Silver |
| Parameter | Specification | Parameter | Specification |
|---|---|---|---|

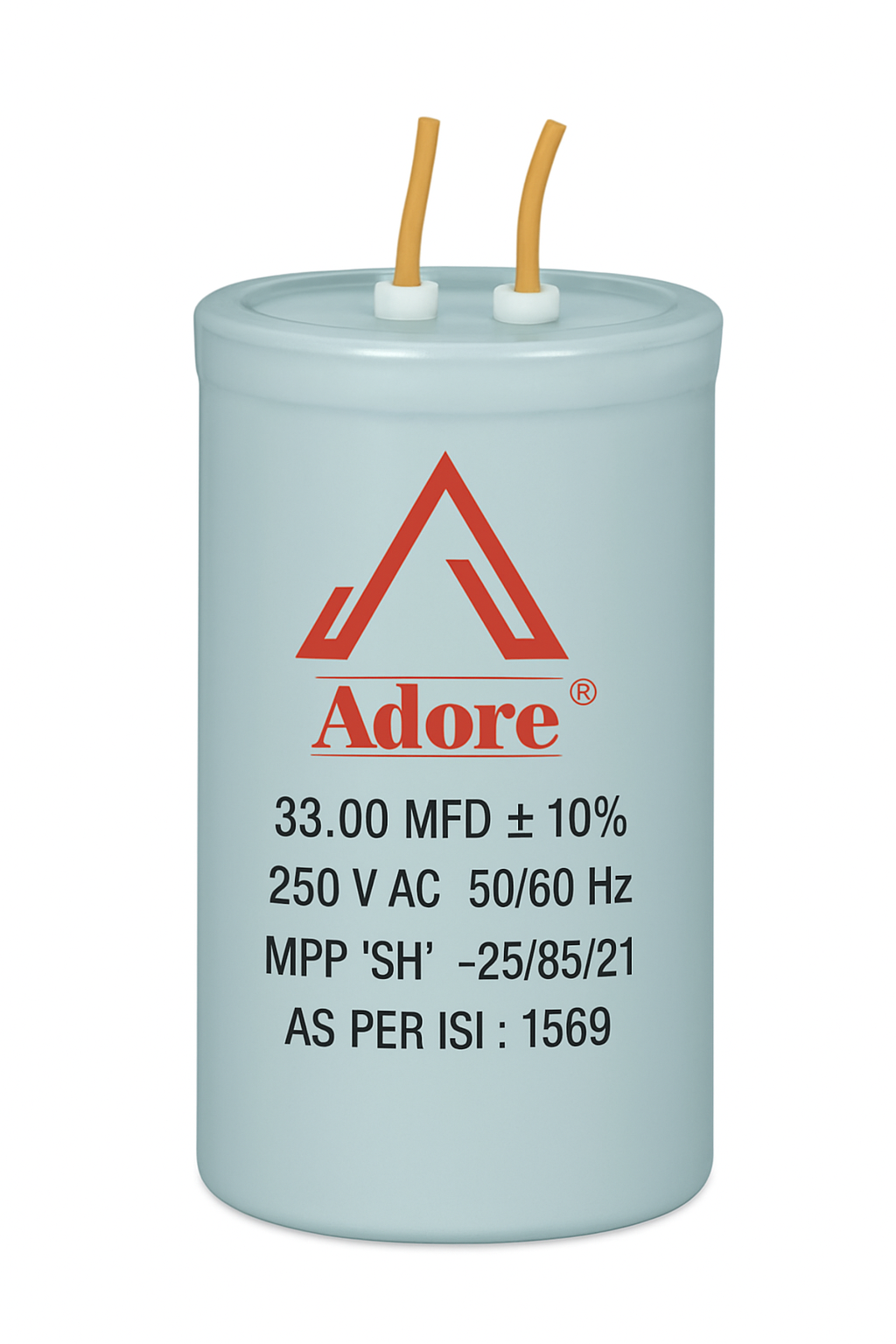

| Product Name | Fluorescent and Discharge Capacitor | Capacitor Type | Dry Filled |
| Capacitance | 3 MFD to 42 MFD | Impregnation | Dry Type |
| Material | Plastic | Usage / Application | Lamps |
| Brand | Adore | Terminals | 2 |
| Mounting Type | Surface Mount | Color | White |
| Tolerance | 10% | Operating Temp | -10°C to +85°C |
| Film Capacitor | Yes | Frequency | 50 Hz |
| Voltage Rating | 250 Volts | Country of Origin | Made in India |
| Parameter | Specification | Parameter | Specification |
|---|---|---|---|
| Product Name | Motor Run Capacitor | Capacitor Type | Dry Filled |
| Capacitance | 5 MFD to 100 MFD | Voltage Rating | 440 VAC |
| Mounting Type | Through Hole | Usage / Application | Panels |
| Material | Plastic | Tolerance | 5% |
| Frequency | 50 Hz | Brand | Adore |
| Temperature Range | -25°C to 85°C | Capacitor Size | 35×71, 40×71, 45×95, 45×120, 50×120 |
| Color | Grey | No. of Phases | 1 Phase |
| Shape | Cylindrical | Size | 45×95, 45×120, 40×71, 40×95 |
| Diameter | 45mm, 40mm | Warranty | 1 year against manufacturing defect |
| I Deal In | New Only | Country of Origin | Made in India |
| Parameter | Specification | Parameter | Specification |
|---|---|---|---|
| Product Name | Dual Capacitor | Terminals | 3 |
| Capacitance | 25 + 2 to 60 + 6 MFD | Usage / Application | Air Conditioner / Motor |
| Material | Aluminium | Tolerance | 5% |
| Voltage Rating | 440 Volt | Brand | Adore |
| Part Number | FCM | Mounting Type | Surface |
| Country of Origin | Made in India | ||
| Parameter | Specification | Parameter | Specification |
|---|---|---|---|
| Product Name | Power Stunt Capacitor | Brand | Adore |
| Capacitance | 25 kVAR | Rated Voltage | 415, 440 VAC |
| Rated Frequency | 50 Hz / 60 Hz | Connection | 3 Phase / 3T Delta |
| Insulation Level | >100 mgha 2.2 K.V | Humidity | Max 95% |
