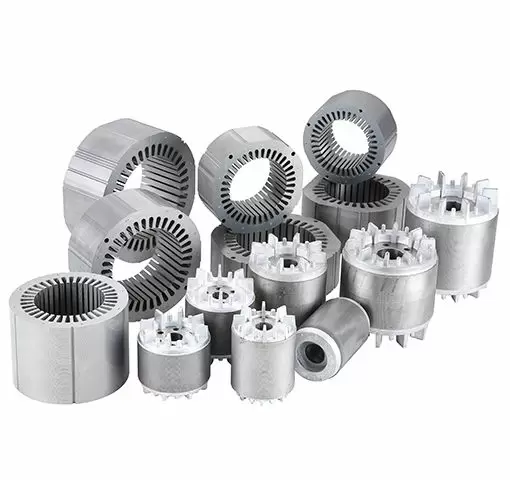

Stator and rotor

STAMPING	SHEET	LAMINATION	GRADE	SLOT	STACK SIZE	AUTO LOCKING	RIVETING	DIAMETER
89 DIA	0.5	CRC / HI PERM / CRNO	ELECTRICAL GRADE	24	MIN 10MM – MAX 100MM	✔	✔	89 X 48
100 DIA	0.5	CRC / HI PERM / CRNO	ELECTRICAL GRADE	24	MIN 10MM – MAX 100MM	✔	✔	100 X 54
110 DIA	0.5	CRC / HI PERM / CRNO	ELECTRICAL GRADE	24	MIN 10MM – MAX 100MM	✔	✔	110 X 62
120 DIA	0.5	CRC / HI PERM / CRNO	ELECTRICAL GRADE	36	MIN 10MM – MAX 100MM	✔	✔	120 X 71
127 DIA	0.5	CRC / HI PERM / CRNO	ELECTRICAL GRADE	24	MIN 10MM – MAX 100MM	✔	✔	127 X 76
139 DIA	0.5	CRC / HI PERM / CRNO	ELECTRICAL GRADE	36	MIN 10MM – MAX 100MM	✔	✔	139 X 78
SUBMERSIBLE	0.5	CRC / HI PERM / CRNO	ELECTRICAL GRADE	24	MIN 100MM – MAX 500MM	✔	✔	92.5 X 50
MONOBLOCK	0.5	CRC / HI PERM / CRNO	ELECTRICAL GRADE	36 AND 24	MIN 20MM – MAX 500MM	✔	✔	126 X 63

Stator and Rotor
